Packaging Engineering That Turns Product Requirements Into Production-Ready Structures
Translate product dimensions, protection needs, packing workflow and commercial priorities into structures that can be sampled, reviewed and manufactured. Proper packaging engineering bridges the gap between early concepts and reliable factory output.
Share your product, dimensions, quantity, destination and target timing. Our team will recommend the next practical step.
When This Service Creates Value
Identifying the structural challenges before mass production is critical. This service is essential when your team faces any of these common procurement and design hurdles.
Vulnerable Products
Items arrive damaged during transit because the current internal voids, inserts, or board grades fail to absorb impact.
Slow Fulfillment
Current packaging structures are overly complex, requiring too much manual labor and time to assemble on your fulfillment line.
Complex Multi-Packs
Need custom inserts to securely hold multiple distinct components (like kits or sets) within a single presentation box.
Uncertain Manufacturability
You have a conceptual design from an agency but are unsure if it can be reliably and cost-effectively mass-produced by a factory.
Material Inefficiencies
Material costs and shipping volumes are escalating due to oversized boxes or inefficient use of paperboard on the printing sheet.
Inconsistent Quality
Experiencing varying tolerances, loose closures, or structural failures across different production runs due to poor initial dieline setup.
What Your Team Receives
Clear deliverables at every stage ensure your procurement and design teams have what they need to make informed decisions.
Requirement Definition
A documented understanding of your product, sales channel, order quantity and delivery context to set structural parameters.
Structural Concepts
Practical proposals covering box formats, closure mechanisms, internal inserts and appropriate paperboard choices.
Dieline Development
Production-oriented cutting and crease layouts provided to your graphic designers for accurate artwork application.
Prototype Review
Physical unprinted samples (white samples) for you to conduct physical checks for fit, function and assembly speed.
Optimization
Iterative refinements to improve material use, packing efficiency and manage primary cost drivers before mass production.
Production Handoff
The fully approved structure prepared for final artwork application and seamless transition into our manufacturing workflow.
How the Work Moves Forward
A structured workflow ensures nothing is left to chance. From initial data gathering to final factory handoff, every step is controlled.
1. Input Collection

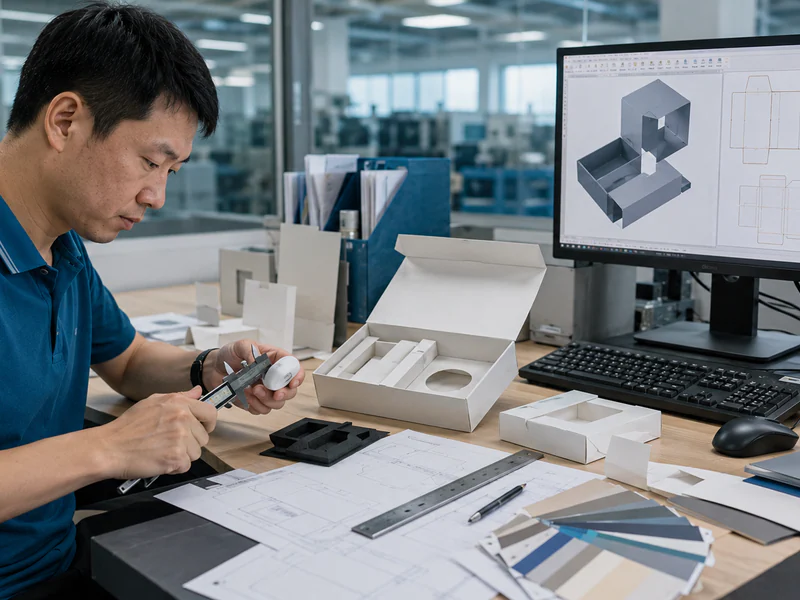

We gather your product dimensions, weights, fragility concerns, and target market requirements to form the project baseline.
2. Feasibility Assessment
Our engineering team evaluates structural options, balancing aesthetic desires with manufacturing realities and material constraints.
3. Initial CAD & Dielines
We draft the technical layout (dieline) using specialized CAD software, mapping out all cuts, scores, and folds precisely.
4. White Sample Production
A physical, unprinted prototype is cut on our plotter machines and shipped to you for real-world evaluation.
5. Refinement & Testing
Our packaging engineering process includes rigorous fit checks. We adjust tolerances based on your feedback from the sample.
6. Final Approval & Handoff
Once the structure is locked, the finalized dieline is approved for your graphic artwork application and subsequent mass production.
Inputs We Need From You
To begin the structural design process efficiently, providing accurate initial data is crucial. Prepare this checklist before contacting our team.
Submit Your Inputs-
Physical Product Exact dimensions (L x W x H) and weight.
-
Target Quantity Estimated order volume to guide material choices.
-
Target Market Retail shelf, e-commerce shipping, or both.
-
Target Timing Expected launch or delivery dates.
-
Destination Where the empty packaging will be shipped.
-
Reference Packaging Photos or examples of structures you like.
Connected to Real Manufacturing
We are not a detached design agency. Every structure we engineer is validated against the realities of paperboard converting, printing, and assembly on the factory floor.
Decisions We Help You Make Earlier
Procurement risks multiply when structural decisions are delayed. See how upfront engineering transforms uncertainty into a controlled outcome.
Unmanaged Risk
- Guessing paperboard thickness, leading to boxes that bulge or tear under weight.
- Designing graphics on generic templates that don't match final factory tooling.
- Discovering assembly takes too long only after receiving thousands of units.
- Paying for excess void-fill because the master carton wasn't optimized.
Clear Outcome
- Calculated board grade selection based on product weight and transit requirements.
- Custom, production-ready dielines provided before any artwork is applied.
- Physical white samples tested for folding speed and fulfillment efficiency.
- Optimized structure dimensions to maximize pallet yield and reduce shipping costs.
Real Project Scenarios
Explore how structural interventions solve specific B2B packaging challenges.
Challenge
High breakage rates during e-commerce shipping due to inadequate internal protection.
Work Performed
Engineered a custom multi-layered corrugated insert to suspend the device, replacing generic bubble wrap.
What Was Validated
Drop test survival and tight internal fit.
Challenge
Excessively slow manual packing times on the client's fulfillment line.
Work Performed
Redesigned a three-piece box and insert into a unified, one-piece folding structure with integrated dividers.
What Was Validated
Significant reduction in assembly time per unit.
Challenge
Box bases collapsing when lifted due to the concentrated weight of the glass product.
Work Performed
Upgraded the base mechanism from a standard tuck-end to a reinforced auto-bottom lock design with thicker board.
What Was Validated
Secure weight-bearing capacity without failure.
Frequently Asked Questions
Common questions about our structural design process.
How long does the structural design process take?
Do we receive physical samples to test?
What if our product dimensions change during the process?
Does this service include graphic design or branding?
Can you reverse-engineer a box structure we already like?
Is this engineering service tied to your manufacturing?
Ready to Define Your Structure?
Start your packaging engineering project today. Provide your product details, and our team will guide you through the structural design and sampling process to prepare for manufacturing.
